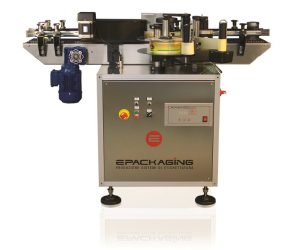

Saturno 1T – Compact

SATURNO 1T – COMPACT is a low cost labeling line for cylindrical products for total wrap-around labeling or semi-wrap-around. Composed with conveyor belt with fixed speed 20m / min and suspension with engine block. The line COMPACT is available with only one labeling head with maximum label width range from 100-140-190 mm.

Data Sheet (download brochure)

  • Construction Material – steel and anodized aluminum
  • SPEED variable 0-20 mt/min
  • Side wrapping unit including fixed h55 speed or 110mm length 350mm
  • Electronic control unit for the head parameter management labeling
  • Support column for labeling head with vertical adjustment and tilt
  • Engine type – step / step
  • Supply voltage – 220 or 110 V 50/60 Hz
  • Standard width of the conveyor belt – 170 mm.
  • Standard length of the conveyor belt – 1500 or 2000mm
